Invicta Vibrator Motors

Introducing the Invicta product range

Invicta is a long-established British manufacturer of industrial vibration equipment and a division of Grantham Engineering Ltd. Its products are developed for the material handling and processing industries, where consistent vibration, robust construction and dependable operation are essential.

The wider Invicta range includes base-mounted and flange-mounted electric vibrator motors, hydraulic vibrators, pneumatic piston vibrators and specialist linear vibration units. This allows the correct drive system to be selected according to the machine, available power source, mounting arrangement and operating environment.


















Base-mounted electric vibrator motors

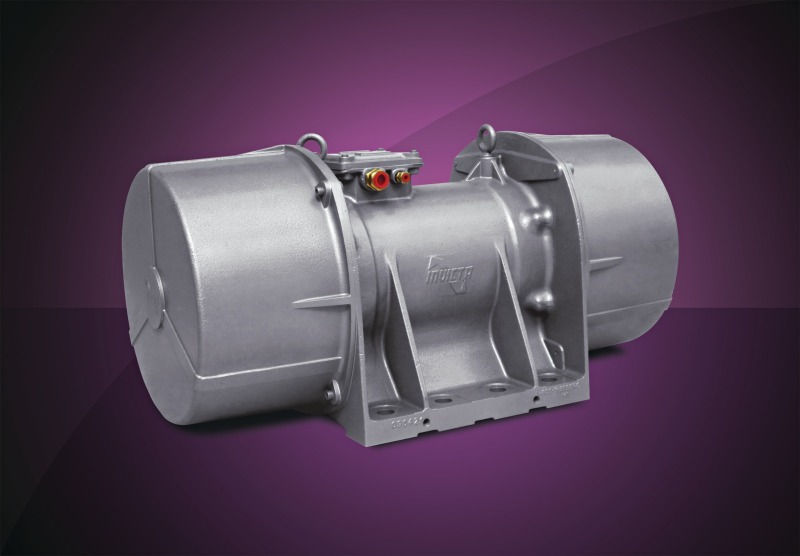

Invicta base-mounted electric vibrator motors, sometimes described as unbalanced motors or shaker motors, are designed for direct installation onto vibrating machinery.

The standard electric range is available with 2, 4, 6 and 8 pole winding configurations, providing different operating speeds to suit applications ranging from high-speed feeding and material flow assistance to slower, higher-amplitude screening and conveying duties.

The base-mounted product line includes:

BL and BLz Series
The standard Invicta base-mounted vibrator motor range. BLz models are available for use in qualifying ATEX Zones 21 and 22 dust environments, while the BL range can accommodate selected low-temperature and high-temperature applications.

BLT and BLTz Series
Heavy-duty motors incorporating a thrust bearing, making them particularly suitable for vertical mounting. BLTz models are available for qualifying ATEX dust environments.

BLC Series
A practical option for selected installations where a single-phase electrical supply is available. Compatible motor sizes can be operated through the appropriate start and run capacitor arrangement.

BLF Series
Fan-cooled vibration motors developed for hot, dirty and demanding industrial environments.

FBL and FBLz Series
Low-profile base-mounted motors designed for machinery where installation height or available space is restricted.

EBK and ULBK Series
Specialist vibration motors developed for selected gas, dust and combined hazardous-area applications. The correct certification and operating conditions should always be confirmed for the specific model and installation.

Flange-mounted vibrator motors

Invicta flange-mounted electric vibrator motors provide an alternative to conventional foot-mounted designs. They are used on equipment where the motor must be mounted through a flange or where a horizontal circular motion is required.

The range includes SFL single-flange motors, ESFK models for selected ATEX gas environments and SWL motors suitable for compatible variable-speed-drive applications. Typical uses include circular sieves, finishing machines and specialist processing equipment.

Hydraulic and pneumatic vibrators

For mobile plant or installations where an electrical supply is unsuitable, Invicta also manufactures hydraulic vibration equipment.
The HV Series consists of base-mounted rotary hydraulic vibrators, while the compact HVL Series uses contra-rotating shafts to produce linear vibration from a single unit. These designs can be particularly useful on mobile screens, crushers and other machinery with limited installation space.

Invicta pneumatic piston vibrators use compressed air to generate reciprocating linear force. Continuous-running cushioned, continuous-impacting and single-impacting versions are available for applications such as hopper discharge, material flow assistance and process equipment.

Typical applications

Invicta vibrator motors can be used across a broad range of industrial equipment, including:

• Vibrating feeders and dosing systems

• Vibrating screens and sieves

• Vibrating conveyors

• Compaction tables

• Hopper and silo discharge systems

• Circular screening machines

• Mobile crushers and screeners

• Bulk material handling systems

• Specialist process machinery


Choosing the correct Invicta motor

Selecting a vibrator motor involves more than matching its physical size or electrical power. The required centrifugal force, operating speed, machine weight, mounting position, voltage, frequency, duty cycle, environmental conditions and fixing centres must all be considered.
For replacement applications, the existing model number and motor nameplate will normally provide a useful starting point. For new machinery, the required movement, working weight and material behaviour should also be reviewed before a motor is selected.

Vibrating Equipment Ltd can assist with:

• New motor selection

• Replacement motor identification

• Base and flange mounting requirements

• 2, 4, 6 and 8 pole configurations

• Paired motor applications

• Variable-speed-drive requirements

• Hazardous-area and ATEX enquiries

• Hydraulic and pneumatic vibration requirements


Why choose Vibrating Equipment Ltd?

We supply industrial vibrator motors alongside complete vibrating machines, giving us a practical understanding of how the motor interacts with the equipment it is driving.

Whether you require a replacement for an existing Invicta motor or are specifying motors for a new feeder, screen, conveyor or compaction system, our team can review the application and help identify a suitable option. Vibrating Equipment Ltd manufactures and supplies vibrating machinery and industrial motors from its UK base, with technical support available for both replacement and new-build projects.

Need help finding the correct vibrator motor?

Send us the existing motor model, a clear photograph of the nameplate or details of your machinery. Where possible, include the voltage, frequency, number of poles, centrifugal force, mounting arrangement and application.

Our team will review the information and help you identify the most suitable vibrator motor for your equipment.
