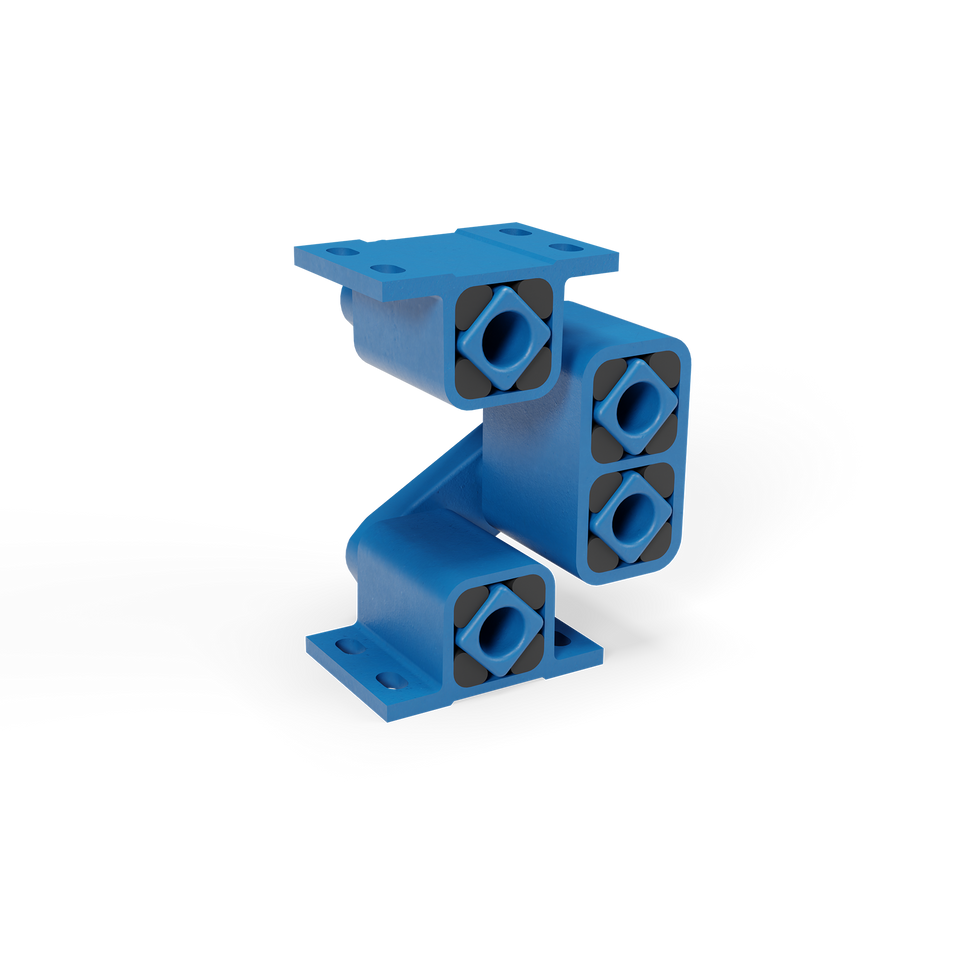

ROSTA HS 45 Oscillating Mounting

Contact us today for pricing via email at sales@spiralelevator.com or call us on 0800 001 6520. Brand: ROSTA Product Family: HS Model: HS 45 ROSTA Article Number: 07 311 013 SKU: 07311013 System: Free oscillation system Mounting Arrangement: Suspended screening and discharge chute installation Construction: Industrial steel construction with ROSTA blue finish Load Range: 2,000–4,200 N Natural Frequency: 3.3–3 Hz Dynamic Spring Value: 142 N/mm vertical; 70 N/mm horizontal Weight: 9 kg Dimensions A: 265 mm unloaded; 325 mm at maximum load Dimensions B: 138 mm unloaded; 113 mm at maximum load Additional Dimensions: C 110 mm; D 13 × 27; E 115 mm; F 145 mm; H 9 mm; K 28 mm; L 100 mm; M 132 mm; N 58 mm ROSTA HS – Simple suspension system for suspended screening and discharge chutes. For process-related reasons, approximately 20% of all screening and discharge chutes are suspended beneath material silos or dosing hoppers. For these applications, ROSTA’s HS-type vibration elements offer an ideal solution, as they allow the screening machine to be suspended directly from the silo or hopper - without the need for complex yoke or intermediate structures. This not only reduces installation effort but also minimizes space requirements in confined plant layouts. The latest HS suspensions feature a specially optimized guide arm geometry that is consistently designed for tensile loads. Under ideal operating conditions, this reduces the suspension’s natural frequency from approximately 5.5 Hz to just about 3.5 Hz. This significant frequency advantage enables an isolation efficiency of over 97% and ensures exceptionally smooth, low-vibration operation - even with varying loads or demanding process conditions. Technical values taken from the ROSTA oscillating mountings catalogue. Confirm final selection and operating conditions before ordering.
